What is a culvert end section?

The end section of a culvert is a flared attachment provided on either side of the culvert pipe for the purpose of improving hydraulic efficiency and preventing erosion. The end sections can be standard flared end sections, bevel cuts, safety slope end sections and safety apron end sections.

What does a flared end section do?

Pipe Flared End Sections provide a transition from the pipe or culvert to the environment upstream and downstream. They improve the flow capacity of the sewer or culvert and create an aesthetically pleasing appearance blends into the embankment. These sections are available from 12” dia. to 72” dia.

What is a concrete headwall?

The Headwall is a precast concrete structure with wings and a bottom to deflect the water away from the soil. Headwalls are used to provide support for bridges and roadways by anchoring the piping to prevent movement due to hydraulic and soil pressures and prevent soil erosion and scouring from turbulent stormwater.

How do you stop a culvert?

B. 2. Install a Sediment Catch Basin. Install a sediment catch basin upstream of the culvert.

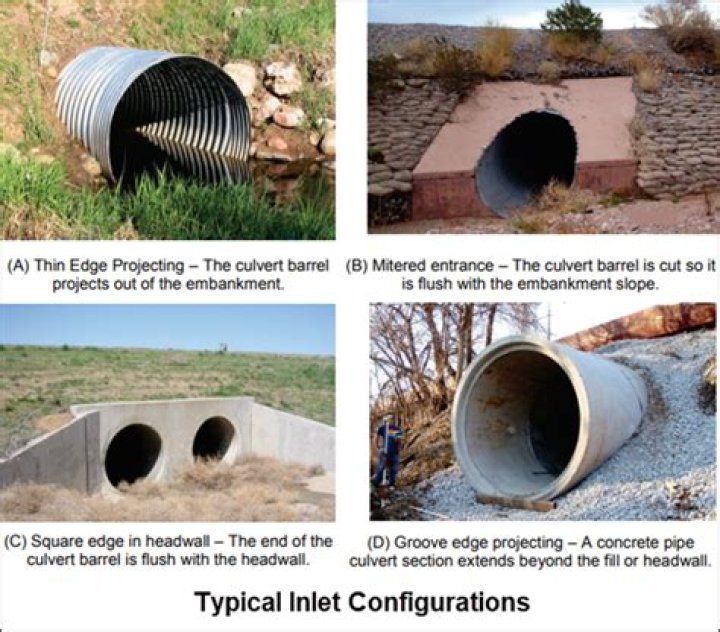

What is a culvert inlet?

A culvert is a relatively short segment of conduit that is typically used to transport water underneath a roadway or other type of earthen embankment. The culvert itself consists of an entrance, an outlet, and a culvert barrel.

What is a headwall in geography?

Definition of headwall 1a : a precipice rising above the floor of a glacial cirque. b : a steep slope forming the head of a valley. 2 : a wall of masonry or concrete built at the outlet of a drainpipe or culvert with the end of the conduit flush with the outer surface of the wall.

What are culverts used for?

Culverts are closed top structures placed under a trail to convey water. Unlike an open top box culvert, water from the trail does not drain directly into the culvert. Culverts for trail use are commonly made out of smooth plastic or corrugated metal and come in round and square cross-section shapes.

What is a culvert Wingwall?

Overview. Wingwalls are headwalls that have vertical concrete slabs that extend at an angle from the pipe opening. They can be made with aprons or footings as needed, and offer superior bridge support and erosion control. Single Piece Construction.

What is a culvert headwall?

Culvert headwalls are attached to the ends of a culvert to reduce erosion, inhibit seepage, retain the fill, improve the aesthetic and hydraulic characteristics, and make the ends structurally stable.

Who is responsible for driveway culverts?

Property owners
Property owners shall be responsible for keeping their culverts clean and ice-free. The Road & Bridge Department may require owners to heat tape their culvert to ensure flow during the winter months to minimize the potential of ice forming on roadways (see Section 5507.02).

What is Ke in culvert design?

The entrance loss coefficient, Ke, is the head loss term of the energy equation for open-channel flow. The head loss coefficient is a measure of the efficiency of the inlet to smoothly transition flow from the upstream channel into the culvert. Although it is typically reported as a constant, it does vary with flow.

Is a concrete driveway a permanent structure?

A Concrete Driveway is a low maintenance permanent structure that usually ties a residential property into the existing cities or county’s street system. Many homeowners agree that a concrete driveway is the best option when compared to other materials such as asphalt, pavers and stone.

Can You cement around PVC pipe?

PVC cement is nothing to scoff at however, and holds PVC pipes together firmly, but it can’t be used to hold CPVC pipes together, as the cement would melt or erode with the constant flow of hot water.

What is Pipe Culvert?

For example, culvert pipe is commonly used to move irrigation water or direct run-off water from one place to the other. Culvert pipe is commonly used in residential, farming, and other construction projects. This type of pipe is also known as sluice pipe or flume pipe when it is used in situations where water needs…

What is cement lined pipe?

Cement-Lined Pipes, Fittings & Flanges. Cement lining is a process by which steel pipe and fittings are coated internally with cement mortar. This process combines the physical strength of steel with the protective qualities of cement mortar.
