What is a power mux?

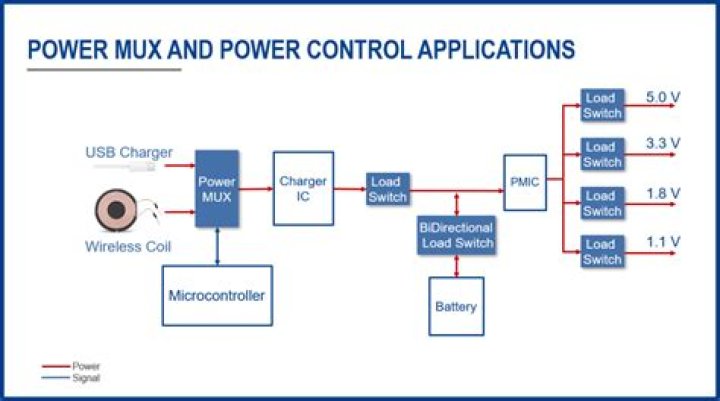

A Power Multiplexer (Power MUX) is a set of electronic switches used to select and transition between two or more input power paths to a single output.

What is a mux switch?

A mux switch allows the laptop to switch between integrated and discrete GPU, allowing both direct access to the display and eliminating the passthrough. So if a game ran at a theoretical solid 90fps with a mux switch, it might run at 85 fps without one. Not optimal, but it’s not a disaster either.

What is a power switch IC?

The load switch IC is located between the power supply and the load. The ICs are used for power management to control the power supply to the load. Similar switches can be constructed with mechanical relays and semiconductors such as MOSFET, but load switch ICs can be miniaturized and consume less power.

What is multiplexer IC?

A Multiplexer IC allows you to interface a number of pins, with a single pin, by using a set of state pins to determine which ones are connected. e.g. you could have 8 LEDs as Outputs, all controlled from a single output. You could also have 8 different switches as Inputs, which are all interfaced to a single input.

Is a MUX switch worth it?

A MUX switch is a preferable, if premium feature Without a MUX switch, your gaming laptop is either stuck with Optimus enabled or disabled, you cannot change it. If you want maximum gaming performance while running a game you can, then if you need maximum battery life at school or in the office you can do that too.

Does Razer Blade 15 have MUX switch?

On all of their Blade laptops, Razer offers a built-in display multiplexer to allow the customer to choose whether to run the display directly off the NVIDIA GPU or via the integrated Intel GPU, vis-à-vis NVIDIA’s Optimus technology. …

How do I choose a power switch?

Your number of electrical inputs will be the same as the number of circuits you want to control. If you want to control equipment using the same electrical input, choose a single pole (SP) switch. If you want to control equipment using power from two seperate electrical inputs, choose a double pole (DP) switch.

How does switch IC work?

Analog switch integrated chips (ICs), when turned on, will conduct both analog and digital signals from the input pin to the output pin. When the digital switch is turned off, it returns to a default logic state. The long version. An analog switch acts like a solid-state relay (i.e., with no moving parts).

What is mux chip?

A multiplexer (mux) or a data selector or input selector is a combinational circuit device that selects one of N inputs and provides it on its output. A set of inputs called select lines determine which input should be passed to the output. For a 2:1 (two-to-one) MUX, when sel is 0, q = a and when sel is 1, q = b.

What is a 2 1 mux?

A 2-to-1 multiplexer consists of two inputs D0 and D1, one select input S and one output Y. Depending on the select signal, the output is connected to either of the inputs. Since there are two input signals, only two ways are possible to connect the inputs to the outputs, so one select is needed to do these operations.

What are power muxes and power distribution switches?

Power muxes can also be referred to as power distribution switches. They are designed to switch between input power supplies so as to provide a continuous output supply rail. They usually do this by controlling very low on-resistance MOSFET switches.

What are power muxes used for?

Power Muxes. Power muxes (power multiplexers) are devices that provide for seamless switching between two or three power supplies. These can switch power rail sources, or intelligently switch power sources for powered interface standards. They are used in applications like computers, digital cameras, modems, cellphones and MP3 players.

What is a power multiplexer?

Power multiplexers (power mux ICs) are devices that provide for seamless switching between two or three power supplies. These can switch power rail sources, or intelligently switch power sources for powered interface standards. They are used in applications like computers, digital cameras, modems, cellphones and MP3 players.
