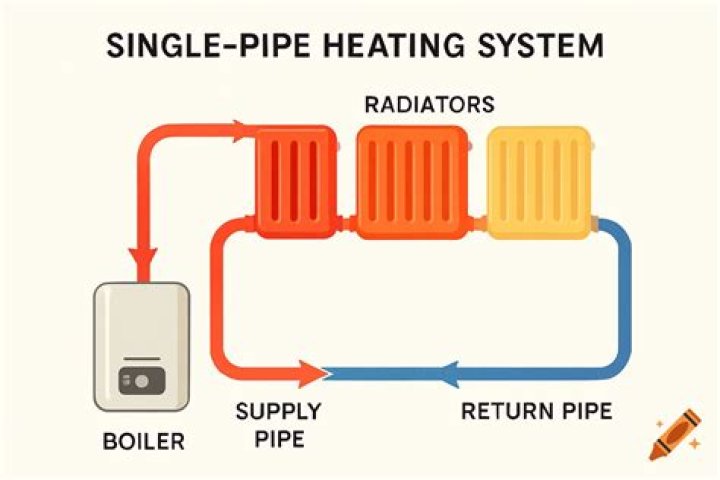

A single pipe central heating system operates through a main single feed hot water supply pipe which comes from the boiler supplying hot water to each radiator. Each radiator has a smaller hot water supply pipe branched off the main feed pipe to supply the radiator.

What is the advantage of a one pipe heating system?

One-pipe system with vertical distribution The water is distributed from above from the horizontal distribution pipe. A single air vent is sufficient at the top. Since there is only one pipeline to the radiators, the system is visually more acceptable. This is an advantage in a system where the pipes are exposed.

Will a combi boiler work on a one pipe system?

A one pipe system is ok for a combi boiler although it does have pitfalls. … Modern boilers require a constant flow rate so any blockages will cause the boiler to overheat and cut out fairly quickly.

What is a one pipe central heating system?

A one pipe system sends the pumped water to each radiator in turn, and returns the water from the last radiator on the run. Early examples of this required much larger bore pipe work at the start of the system to ensure that the last radiators received some heat.

What is a one pipe radiator system?

One pipe: If you see only one pipe coming from your radiator, that means you have a one-pipe system, and it is definitely steam. The steam comes through the pipe, the heat is dispersed, the steam condenses in the radiator, and the water returns through the same pipe to the boiler.

What are the disadvantage of two pipe system?

The two-pipe system’s main limitation is its lack of operating flexibility. Depending on the facility’s needs, the system’s hydronic piping circuit that runs throughout the building must connect to the boiler or the chiller.

What is one pipe system in plumbing?

In this system of plumbing the waste connections from sinks, baths, washbasins, and the soil pipe which is connected directly to the drainage system. Gully traps and waste pipes are completely dispensed with. d) The waste pipe should join the stack, above the soil branch at each floor. …

Can you power flush a one pipe system?

Can you power flush a single pipe system? A. If the radiators on a single pipe system have severe deposit build-ups, or cold panels, then the power flush is not likely to be successful. BS7593:2006 advises against power flushing a single pipe system.

Which is better one pipe or two pipe system?

The two pipe system is much more efficient than the single pipe system but still needs to be balanced properly at the end of the installation.

What is one pipe and two pipe system?

Two Pipe System. One pipe collects the foul soil and water closet wastes, and the second pipe collects the water from the kitchen, bathrooms, house washings, etc. The soil pipes are directly connected to the manhole/drain, where is the waste pipes arc connected through a fully ventilated gully trap.

Article first time published on

How many pipes are connected to a combi boiler?

You will find seven pipes attached to the boiler: A gas supply pipe. Mains cold water inlet.

How do you balance a one-pipe steam heating system?

1. First, vent the mains quickly. …
2. Install a “Y” strainer before the main vent. …
3. Vent the radiators based on their size, not on their location within the building. …
4. Use two vents on oversized radiators. …
5. Insulate all the steam lines. …
6. Clean the system (and a dozen times, if necessary).

What is a single feed system?

A single feed cylinder incorporates a multi purpose heat exchanger. As well as heating the potable water it also acts to top up the primary circuit which is the water that circulates in your radiators.

What are the different radiator types?

• Single Panel Radiators.
• Double Panel Radiators.
• Horizontal Radiators.
• Vertical Radiators.
• Column Radiators.
• Heated Towel Rails.

What is two pipe system?

A 2-pipe HVAC system is one that uses the same piping alternately for hot water heating and chilled water cooling, as opposed to a 4-pipe system that uses separate lines for hot and chilled water. Two-pipe originated 50 or 60 years ago as a cost-effective way to add air conditioning.

How many pipes are lay in one pipe system?

1. In this system, two sets of vertical pipes are laid. One pipe is used for draining sullage. Both the pipes are ventilated separately by providing separate vent pipes or anti-siphonage pipes.

What is the difference between single and dual stack pipe system in plumbing?

Modern homes tend to have a single-pipe system which involves one vertical large-diameter pipe (called a soil stack) running inside the property. In older more traditional homes, it involves a dual-pipe setup. Wastewater and soil water are taken separately to the public sewer system.

How many pipes are there in a one pipe system?

2) One pipe system:- In this system, instead of using two separate pipes(for carrying sullage and night soil, as it done in the above described two pipe system), only main vertical pipe is provided which collects the night soil as well as the sullage water from their respective fixtures through the branch pipes.

What is the advantage to a two pipe system direct return?

Advantages. The advantage with the two-pipe reverse return system is that the pipe run to each radiator is about the same, this ensures that the frictional resistance to the flow of water in each radiator is the same. This allows easy balancing of the system.

What is a 4 pipe HVAC system?

The 4-pipe HVAC system has two supply and two return pipes for both heating and cooling. That means that the heating and cooling coils have separate hydronic piping. You can simultaneously heat and cool a single condo, which allows for dehumidification.

What is a 2 pipe fan coil system?

A 2 Pipe Fan coil system is a single closed loop supply and return water distribution system that serves each suite. The building has a central chiller and cooling tower to cool the water in the loop and a Boiler to heat the water in. the loop.

Why do radiators have 2 pipes?

Two-pipe and single-pipe systems A second pipe (called the ‘return pipe’) collects the cooled water from the radiators and carries it back to the boiler for re-heating. … As a result, the radiators located near the end of the circuit need to be bigger to give off the same amount of heat.

How do you bleed a one pipe heating system?

1. Turn your heating on. …
2. Identify which radiators need bleeding. …
3. Turn off your heating and wait for the radiators to cool. …
4. Place a cloth below the radiator bleed valve. …
5. Open the valve and release the air. …
6. Close the valve. …
7. Check the boiler pressure.

How long does it take to power flush a heating system?

Usually, a Powerflush can take up to around 8 hours to perform, however on particularly complicated systems, it could take up to 2 days.

How do I know if I have a Primatic cylinder?

The bubble is compressed and changes position. If you have a cold water storage cistern, a hot water cylinder, and a boiler, but no feed and expansion tank or expansion vessel, it’s quite possible that you have a primatic cylinder.

Can power flush cause leaks?

A powerflush is a way of cleaning the system quickly and once. You’ll need to do it year after year and it’ll never clear all the crud. Powerflushing also places extreme pressure on the system and can cause leaks easily.

What is a single stack system?

An above-ground drainage system that comprises a large-diameter single vertical-discharge stack that conveys both soil and wastewater to the drain, as well as providing ventilation. … The length of the soil and the waste pipe connections from the stack are restricted.

What is most commonly used in single stack system?

Single stack system with stack aerator A single stack system with stack aerators is always composed of three elements: A stack aerator on each floor. A pressure relief line at the base of the stack. Venting through the roof.

Do I need new pipes for a combi boiler?

Most gas combi boilers require a 22mm supply pipe to be fitted from the combi boiler to the meter. … This means it needs a larger pipe to provide the correct volume of gas. You may also require an upgrade if you are installing a larger output boiler than at present for a higher hot water output.

Do combi boilers have overflow pipes?

Combination boilers have a pipe that’s similar to an overflow pipe, called a pressure relief valve. This valve releases water if the system builds up too much pressure. The pipe is copper and runs from the boiler to the outside of your house. It will only release water if there’s a problem.

Should boiler pipes be covered?

The most important thing to remember when covering a boiler is safety. Ventilation and access are both essential for your boiler. If you have a boiler breakdown, an engineer needs to be able to access the boiler and the pipes with ease.
