What is Class 2A thread fit?

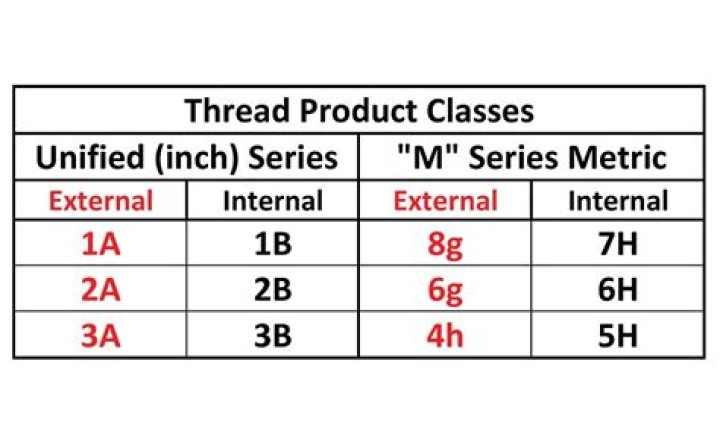

Class 1A is a loose commercial fit for easy assembly and disassembly. Class 2A is a medium fit. Class 3A is a tight fit used where a closed fit between mating parts is required.

What is UNC 2A thread?

2A (external) & 2B (internal): most commonly used class for general applications. 3A (external) & 3B (internal): for applications where closeness of fit and/or accuracy of thread elements are important. If you have any questions please contact us or check out our fittings with UNF thread.

What is the difference between a 2A and 2B thread?

Classes 2A and 2B are by far the most popular thread classes specified for inch series mechanical fasteners. Close to 90 percent of all commercial and industrial fasteners produced in North America have this class of thread fit. Class 2A external threads have an allowance, Class 2B internal threads do not.

What size is a 1/8 bolt?

US Machine Screw Diameters

What is UNC thread?

Unified coarse pitch threads
The Unified Thread Series is classified into coarse threads, fine threads and extra fine threads much like Metric screw threads are. UNC: Is the symbol for Unified coarse pitch threads. UNF: Is the symbol for Unified fine pitch threads. UNEF: Is the symbol for United extra fine pitch threads.

Can you mix 2A and 3B threads?

No problem, you canmix and match classes for nuts and bolts – the class 3 is tighter in tolereance, but will still fit with class 2.

What does 8 UNC mean?

UNC: Is the symbol for Unified coarse pitch threads. UNF: Is the symbol for Unified fine pitch threads.

What is UNC 2B thread?

A 3/8″-16UNC 2B is defined as a 3/8″ diameter Unified coarse pitch 2B class of fit inch screw thread. If the thread is a 3/8″-16NC2 and the letters U, A and B do not appear in the thread designation, the thread conforms to the outdated American National thread.

What size bolt has a 1 1 8 head?

US Bolt Head/Wrench Size

What size bolt does a 1/2 nut fit?

Hex Bolt, Lag Bolt, Square Bolt and Heavy Hex Bolt

What is the difference between NC and UNC threads?

Coarse threads have a larger pitch ( fewer threads per inch, or a bigger distance between the threads) compared to fine threads….

What does UNC 3B mean?

¼ -20 – UNC -3B –LH means this is a ¼ inch diameter thread with 20 thread per inch, manufactured in accordance with Unified National Coarse Standard. The thread is internal and precise and also left handed.

What are the dimensions of a UNC screw thread?

External Thread Dimensions for Unified UNC Screw Threads Diameter Pitch TPI Thread Fit Class Major Diameter Pitch Diameter Minor Diameter Stress Area Max Min Max Min Max Min in² No 1 64 2A 0.0724 0.0686 0.0623 0.0603 0.0538 0.00263 No 2 56 2A 0.0854 0.0813 0.0738 0.0717 0.0642 0.00370

What is the size of a ununc thread?

UNC threads according ANSI B1.1: Major Diameter (in) Threads per inch (tpi) Major Diameter Major Diameter Tap Drill Size (mm) (in) (mm) #1 – 64 64 0.073 1.854 1.50 #2 – 56 56 0.086 2.184 1.80 #3 – 48 48 0.099 2.515 2.10

What are the dimensions of a UNF thread?

UNF threads ANSI B1.1: Major Diameter (in) Threads per inch (tpi) Major Diameter Major Diameter Pitch (mm) 3/8″ – 24 24 0.375 9.525 1.058 7/16″ – 20 20 0.438 11.112 1.270 1/2″ – 20 20 0.500 12.700 1.270 9/16″ – 18 18 0.563 14.288 1.411

What is the difference between female and male UNC threads?

Female and Male UNC/UNF threads are both parallel The UNC/UNF flank angle is 60° Unified threads comes in three different classes: for applications where a liberal tolerance is required to permit easy assembly even with slightly nicked threads
