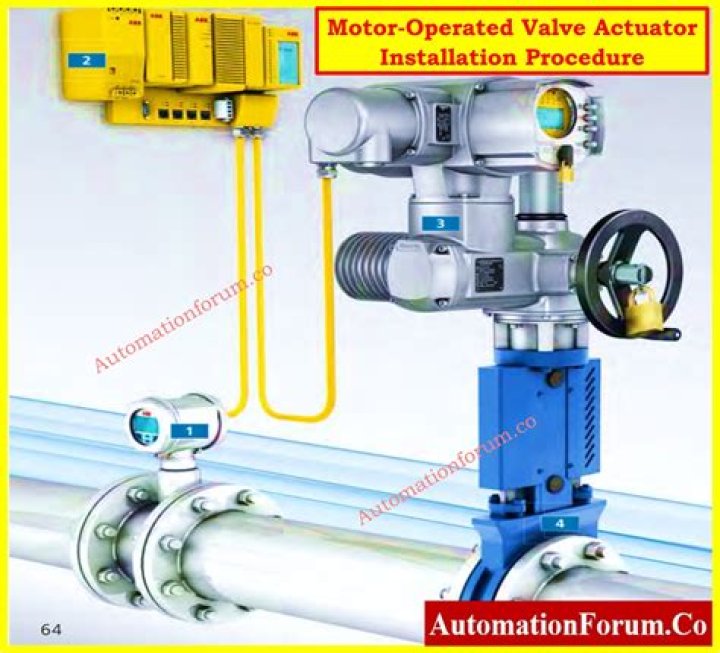

What is motorized valve actuator?

Motorized control valves are powered by different types of actuators, which work to move the valve to the appropriate position for flow needs. These actuators respond to sensors, and as a result change the amount of flow.

What does an actuator do on a control valve?

The actuator is the next logical area of interest. The operation of a control valve involves positioning its movable part (the plug, ball or vane) relative to the stationary seat of the valve. The purpose of the valve actuator is to accurately locate the valve plug in a position dictated by the control signal.

What is the difference between control valve and actuator?

A control valve is just an actuated valve where the actuator is modulated via a signal from a controller. A self operated regulator has a connection to the process and uses a process variable such as pressure, level, or temperature to generate the force that actuates the valve.

How does a two way control valve work?

2 Way Valve Operation When fluid enters the inlet (port A) of a 2 way valve, the relative position of the plug dictates the amount of fluid allowed to leave the outlet (port AB). When the plug and spindle are positioned all the way up, the valve is fully closed from ports A to AB.

What are the most common types of valve actuators?

Lesson 2: The Most Common Types of Valve Actuators They are rotary and linear.

What is actuator and types of actuators?

Actuators are motors responsible for controlling or moving a system or mechanism. In order to operate, an actuator needs an energy source, which is usually hydraulic fluid pressure, electric current or pneumatic pressure, which works by converting energy into motion.

What type of valve controls the force of an actuator?

A solenoid valve is used to control the air flow into and venting of the actuator. Since there is no spring force to overcome, a smaller actuator can often be used. Both Vane and Rack-n-pinion style double acting actuators have an constant, linear torque output throughout the stroke in both directions.

Which valve controls direction of actuator?

Double acting pneumatic actuators require air to be used to move the piston in either direction. A solenoid valve is used to control the air flow into and venting of the actuator.

Is actuator the same as motor?

The term “Actuator” typically refers to a device that provides linear motion… like a piston, a rod is pushed in a linear manner when voltage is applied. A Motor is a device that provides rotational movement, like in a toy car, the motor spins a wheel usually through gears to reduce the speed and increase the torque.

How many exit ports does a 2 way valve have?

1 exit port
How many exit ports does a 2 way valve have? Explanation: A 2 way valve has 1 exit port. It has total two ports, one entry port and one exit port.

What is a valvalve actuator?

Valve actuators mount directly onto flanged or threaded globe valves or unitary valves for control in HVAC systems. Honeywell’s characterized control ball valves feature a parabolic flow insert that’s integral to the ball. Its unique construction enables a smoother flow curve and greater degree of rotation responsiveness.

What is the purpose of a two way valve?

Two-way valves can be used to control the amount of steam entering a system. A typical example of this type of application would be to regulate the amount of steam entering a heat exchanger to maintain the hot water output temperature using the HWR Platinum control.

How do two way valves work with heating control systems?

These valves integrate perfectly with our heating control systems to provide the complete solution to a buildings heating system. Two-way valves can turn on or off the flow of steam from the boiler or other sources into a steam distribution system.

What kind of valves do Honeywell HVAC companies use?

Valves and Valve Actuators Honeywell commercial HVAC valves control steam, water and water with glycol media in heating and cooling applications. Available in 2-way and 3-way configurations and sizes from 1/2″ to 20″, precision valves ensure a correct fit for economic operation and long equipment life.
