What size bolt has a 19mm head?
What size bolt has a 19mm head?

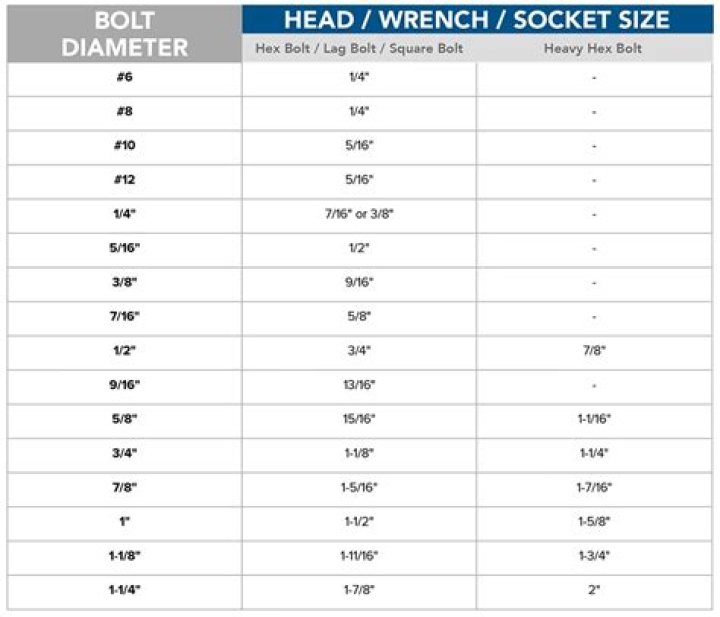

Size Chart
| Bolt size | Size | Tolerance |
|---|---|---|
| 18mm | 18.40 | |
| 3/8″BSW | 18.43 | |
| M12 | 19mm | 19.46 |
| 1/2″UNF | 3/4″ | 19.51 |
What is M20 bolt size?
Dimensions for DIN931 Hex Head Bolt
| Diameter (d) | Pitch | Across Flats (s) |
|---|---|---|
| M18 | 2.5mm | 27mm |
| M20 | 2.5mm | 30mm |
| M22 | 2.5mm | 32mm |
| M24 | 3.0mm | 36mm |
What size is a 8.8 Bolt?
8mm x 1.0mm x 60mm
Metric hex bolts, Zinc plated class 8.8 steel, 8mm x 1.0mm x 60mm.
What size bolt is M10?
Metric Hex Bolt Dimensions
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNESS |
|---|---|---|
| m10 | 10.00 | 6.63 |
| m12 | 12.00 | 7.76 |
| m14 | 14.00 | 9.09 |
| m16 | 16.00 | 10.32 |
What is a M16 bolt?
Metric bolts are made fractionally under their stated size, for instance an M16 bolt will have a shank diameter of typically 15.97mm. This means that a 16mm bolt will fit through a 16mm hole but to allow for misalignment between parts it is common practice to drill bolt holes slightly larger.
What size is M18 bolt?
The threads of an M14-2.0 screw, which is coarse, are spaced 0.079 inches (2.0 mm)….Table 3.
| Metric | Closest Inch |
|---|---|
| M14-2.0 | 9/16-12 (Larger) |
| M16-2.0 | 5/8-11 (Smaller) |
| M18-2.5 | 3/4-10 (Larger) |
| M20-2.5 | 3/4-10 (Smaller) |
What diameter is M8 bolt?
So an M8 bolt would have a shaft diameter that’s slightly under 8mm which means that the bolt should fit through an 8mm hole.
What diameter is M16 thread?
| Tap size | Basic major dia (mm) | Basic major dia (inch) |
|---|---|---|
| M14 x 1.5 | 14mm | .5512 |
| M16 x 2 | 16mm | .6299 |
| M16 x 1.5 | 16mm | .6299 |
| M18 x 2.5 | 18mm | .7087 |
What does JDF stand for on a bolt?
This is a great 8 bolt. Again you see JDF on that bolt on the top. Those initials again are manufacturers marking to indicate that this is their bolt and then you see 1, 2, 3, 4, 5, 6 slashes indicating it’s a grade 8.
What does 8.8 stand for?
Medium carbon steel
Bolt Grade Markings and Strength Chart
| Grade and Material | Nominal Size Range (inches) |
|---|---|
| Class 8.8 Medium carbon steel, quenched and tempered | All sizes below 16mm |
| 16mm – 72mm | |
| Class 10.9 Alloy steel, quenched and tempered | 5mm – 100mm |
Is M10 the same as 10mm?
If the size is M10 x 25, that would mean that the diameter is 10 mm. The 25 indicated a length of 25 mm. A matching nut would be labeled M10, which also doesn’t require a thread pitch since it’s a course thread fastener.
What is M12 in MM?
19 mm
Standard metric spanner and allen key sizes.
| Size | Spanner | Allen Key |
|---|---|---|
| M8 | 13 mm | 6 mm |
| M10 | 17 mm | 8 mm |
| M12 | 19 mm | 10 mm |
| M16 | 24 mm | 14 mm |
