Precipitation hardening, also called age hardening or particle hardening, is a heat treatment technique used to increase the yield strength of malleable materials, including most structural alloys of aluminium, magnesium, nickel, titanium, and some steels and stainless steels.

What properties does precipitation hardening influence?

Precipitation hardening creates a harder, stronger metal. Aluminum is a fairly soft metal, so this process can significantly increase its yield strength, increase its tensile strength, and increase its wear resistance. Yield strength refers to how much stress a part can withstand without permanently distorting.

What alloys use precipitation hardening?

Precipitation hardening alloys include 2000, 6000 and 7000 series aluminium alloys, some superalloys and some stainless steels. An age hardening alloy can be tempered after quenching by heating at temperatures below the solutionising temperature.

What is the principle of precipitation hardening?

Precipitation hardening is the hardening of a material due to the growth of precipitates that impede dislocation motion. Basically, this process involves heating a mixture to a high temperature, then cooling, then heating to a medium temperature, and finally cooling again.

Does precipitation hardening increase ductility?

If the alloy is heated still further, the precipitate will coarsen; that is, the finest particles will dissolve so that the average particle size will increase. This will reduce the hardness somewhat but increase the ductility. Precipitation hardening is used to produce most high-strength alloys.

What is precipitation hardening of stainless steel?

The precipitation hardening (PH) stainless steels are a family of corrosion resistant alloys some of which can be heat treated to provide tensile strengths of 850MPa to 1700MPa and yield strengths of 520MPA to over 1500MPa – some three or four times that of an austenitic stainless steel such as type 304 or type 316.

What is the difference between precipitation hardening and age hardening?

BUT: Precipitation hardening is strengthening by precipitates of a second phase during cooling of HOMOGENEOUS solid solution. Age hardening is strengthening by precipitates of a second phase during annealing of a SUPERSATURATED solid solution.

Why hardening is done?

Hardening is a metallurgical metalworking process used to increase the hardness of a metal. The hardness of a metal is directly proportional to the uniaxial yield stress at the location of the imposed strain. A harder metal will have a higher resistance to plastic deformation than a less hard metal.

What are two important factors that affect solid solution hardening?

• Concentration of solute atoms.
• Shear modulus of solute atoms.
• Size of solute atoms.
• Valency of solute atoms (for ionic materials)

What do you understand by strain hardening?

Strain Hardening is when a metal is strained beyond the yield point. An increasing stress is required to produce additional plastic deformation and the metal apparently becomes stronger and more difficult to deform.

Article first time published on

How does precipitation-hardening strengthen metals?

Precipitation hardening, also called age or particle hardening, is a heat treatment process that helps make metals stronger. The process does this by producing uniformly dispersed particles within a metal’s grain structure that help hinder motion and thereby strengthen it—particularly if the metal is malleable.

How do precipitates increase yield strength?

The precipitate particles act to ‘pin’ grain boundaries within the microstructure of the alloy, which hinders their movement when the alloy is being strained. This increases the yield strength of the alloy.

What feature of an alloy is required for precipitation-hardening?

1.1 Precipitation from supersaturated solid solution. The basic requirements of a precipitation-hardening alloy system is that the solid solubility limit should decrease with decreasing temperature as shown in Figure 8.1 for the Al–Cu system.

What is precipitation process?

Precipitation forms in the clouds when water vapor condenses into bigger and bigger droplets of water. When the drops are heavy enough, they fall to the Earth. … These ice crystals then fall to the Earth as snow, hail, or rain, depending on the temperature within the cloud and at the Earth’s surface.

What is the difference between solid solution strengthening and precipitation strengthening?

Differences: **Solid solution strengthening is the effect of alloying a metal while remaining within the single phase region of the phase diagram. Precipitation strengthening results when the addition is greater than its solubility in the host matrix.

What is solution treated?

Solution treatment is a heat treating process that heats alloys to a specific temperature, sustaining that temperature long enough to cause one or more constituents to enter into a solid solution and then rapidly cooled to maintain the solution’s properties.

What is the difference between natural aging and artificial aging in precipitation hardening?

Natural aging is a step in the heat treatment of aluminum alloys in which the metal is removed from the quench bath and allowed to gain its full strength at room temperature. In artificial aging, the metal is held at an elevated temperature for it to gain its full strength in a shorter period of time.

What solution is used in precipitation hardening?

Precipitation hardening is a heat treatment technique that takes place in low temperatures and makes use of alloying materials, such as aluminum and titanium. This causes increased yield strength as well as improved corrosion resistance, depending on the alloying metals.

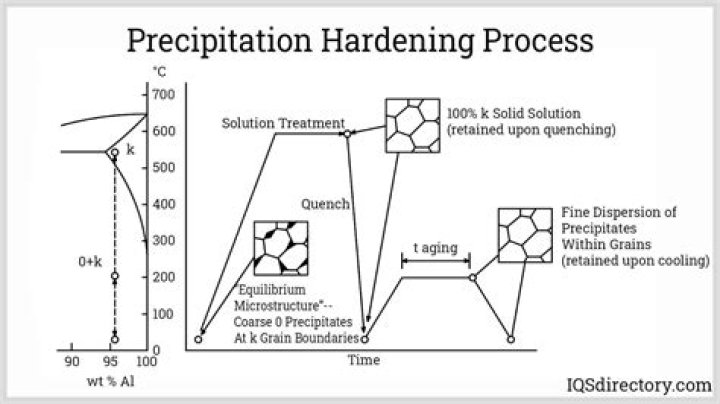

What are the three processing steps in precipitation hardening?

• Solutionizing: Solutionizing or “solution treatment” is the first part of the process of precipitation hardening. …
• Quenching: The second phase of the process is the rapid cooling or quenching of the alloy. …
• Aging: The third and final stage of the precipitation-hardening process is the aging phase.

Do all metals work harden?

Alloys not amenable to heat treatment, including low-carbon steel, are often work-hardened. Some materials cannot be work-hardened at low temperatures, such as indium, however others can be strengthened only via work hardening, such as pure copper and aluminum.

Why are Hume Rothery's rules followed?

1. Why are Hume Rothery’s rules followed? Explanation: To form an extensive solid solution, Hume Rothery’s rules are obeyed. An extensive solid solution is generally considered as one that is greater than 10 atomic percent soluble.

Why does solid solution occur?

Solid solution occurs as the result of ions substituting for one another in a crystal structure. The factors that control the amount of solid solution that can take place in any given crystal structure are: The size of the ions and the size of the crystallographic sites into which they substitute.

Does solid solution strengthening decrease ductility?

Solid solution hardening due to carbon has a major effect on the strength of martensite, but ductility can be obtained only at low carbon levels. Although alloying elements affect hardenability, they have only a minor effect on hardness, simply reducing it at high carbon levels by causing austenite to be retained.

Can brass be precipitation hardened?

For microstructure of brass produce by precipitation hardening, shape of α phase are slender and long which have slight distributed in β-phase. The mechanicals properties, that is hardness, ultimate tensile strength and compressive strength.

Why hardening is followed by tempering?

Tempering is usually performed after hardening, to reduce some of the excess hardness, and is done by heating the metal to some temperature below the critical point for a certain period of time, then allowing it to cool in still air.

Why is it called strain hardening?

Strain hardening (also called work-hardening or cold-working) is the process of making a metal harder and stronger through plastic deformation. … This implies that the metal is becoming stronger as the strain increases. Hence, it is called “Strain Hardening”.

What is strain hardening and why does it occur is it good or bad for the mechanical properties of a material justify?

Although a very stubborn resistance to plastic deformation does lead to brittle behavior, the process of hardening is actually quite important for structural reliability. Any material which has higher hardenability, is actually more ductile. … Therefore, strain hardening is necessary for improving ductility.

Why does cold work increase hardness?

When a metal is bent or shaped, dislocations are generated and move. As the number of dislocations in the crystal increases, they will get tangled or pinned and will not be able to move. This will strengthen the metal, making it harder to deform. This process is known as cold working.

How does precipitation harden steel?

Hardening is achieved through the addition of one or more of the elements Copper, Aluminium, Titanium, Niobium, and Molybdenum. The most well known precipitation hardening steel is 17-4 PH. The name comes from the additions 17% Chromium and 4% Nickel. It also contains 4% Copper and 0.3% Niobium.

What are the two functions of quenching in precipitation hardening?

The process is called Precipitation Hardening or Age Hardening which involves three distinct steps: Solution Treatment to minimize segregation in the alloy, Quenching to create a supersaturated solid solution and Aging to facilitate the formation of coherent precipitates which strengthen the alloy by interfering with …

What is precipitation heat treating?

Precipitation heat treatment involves heating alloys up to an appropriate temperature and holding that specific temperature for an adequate time to introduce one or several constituents into the solid solution, and then undergo rapid cooling to have these enclosed within the solution.
